Schneider Electric przemiennik częstotliwości Altivar 15 kW ATV320D15N4B
3 729,09 zł
### Electrical Specifications
Operating voltage: 24V AC/DC, rated for low-power applications. Coil resistance ensures stable function under variable loads, compliant with standard industrial requirements. Contact rating supports up to 5A, suitable for medium-duty electrical tasks.
### Mechanical Properties
Relay housing features durable polymer material; resistant to environmental stressors like temperature fluctuations (-40°C to +70°C). Compact dimensions facilitate integration into densely arranged panels. Terminal connections use screw clamps for secure wiring and easy replacement.
– Max switching current: 5A; exceeds may cause contact degradation.
– Recommended application: Control circuits and light loads only.
– Operating position: Horizontal – may fail in vertical orientations.
– Must be installed in dry environments; not moisture resistant.
– Lifetime expectancy dependent on load frequency—average cycles listed at ~500K under nominal use parameters.
20 w magazynie

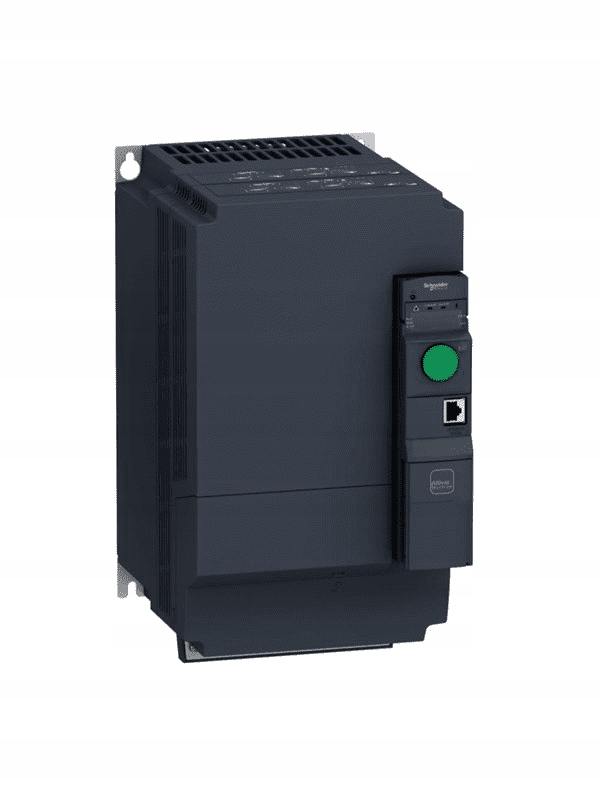

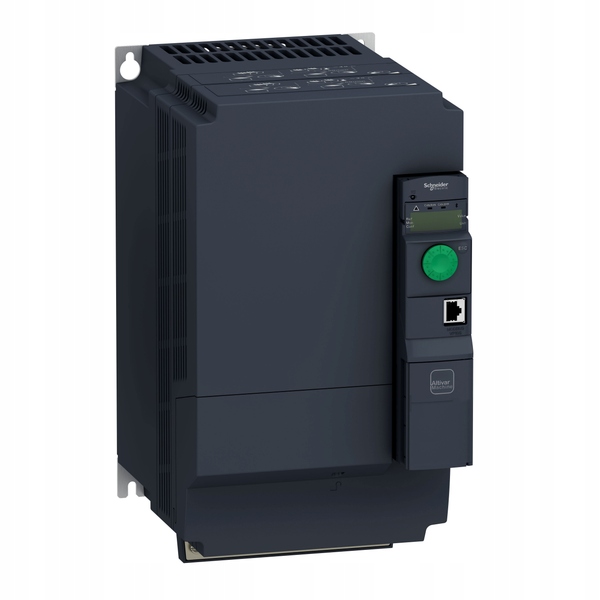

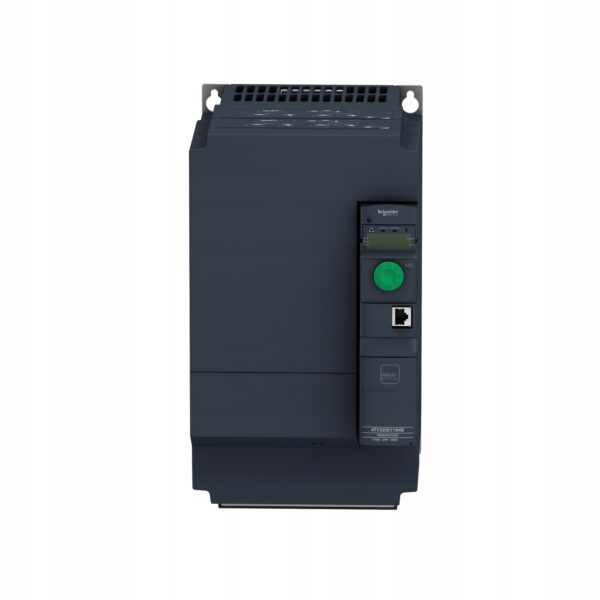

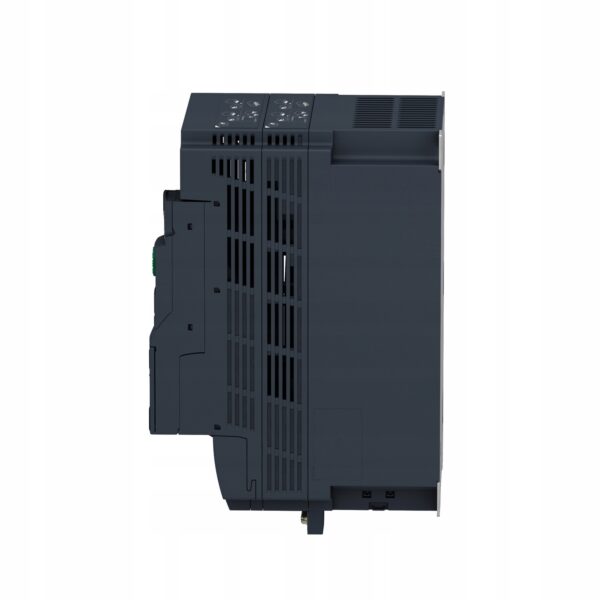

Schneider Electric przemiennik częstotliwości Altivar 15 kW ATV320D15N4B
Przemiennik częstotliwości Schneider Electric Altivar Machine
Przemiennik częstotliwości o mocy 15 kW, do pracy przy napięciu 380 V do 500 V i w układzie 3-fazowym. Urządzenie pracuje z częstotliwością 50/60 Hz, a maksymalna częstotliwość wyjściowa wynosi 599 Hz.
Model wyposażono w element sterujący oraz funkcję połączenia z komputerem. Do dyspozycji jest 6 wejść cyfrowych, 1 wyjście cyfrowe, 3 wejścia analogowe i 1 wyjście analogowe. Urządzenie ma 1 interfejs Industrial Ethernet i 1 interfejs RS-485 oraz obsługuje protokoły PROFIBUS, CAN, Modbus, DeviceNet, EtherNet/IP i PROFINET IO.
Nominalny prąd wyjściowy I2N wynosi 33 A, a maksymalne napięcie wyjściowe 500 V. Przemiennik umożliwia pracę 4-kwadrantową. Stopień ochrony: IP20.
- Moc wyjściowa: 15 kW
- Napięcie: 380 V do 500 V
- Liczba faz: 3
- Częstotliwość: 50/60 Hz
- Maks. częstotliwość wyjściowa: 599 Hz
- Prąd wyjściowy I2N: 33 A
- Wymiary: 18 × 33 × 23,2 cm
EAN: 3606480931321 | MPN: ATV320D15N4B | Original name: Variable speed drive, Altivar Machine ATV320, 15 kW, 380…500 V, 3 phases, book
- Częstotliwość [Hz]: 50/60 Hz
- Liczba faz: 3
- Relative symmetric net voltage tolerance: 10 %
- Relative symmetric net frequency tolerance: 5 %
- Packing level 1: 3606480931321
- Packing level 2: 3606480931321
- With control element: Yes
- Number of digital inputs: 6
- Number of digital outputs: 1
- Number of analogue inputs: 3
- Number of analogue outputs: 1
- Supporting protocol for LON: No
- Number of HW-interfaces industrial Ethernet: 1
- Number of HW-interfaces RS-232: 0
- Number of HW-interfaces RS-422: 0
- Number of HW-interfaces RS-485: 1
- Number of HW-interfaces serial TTY: 0
- Number of HW-interfaces USB: 0
- Number of HW-interfaces parallel: 0
- Number of HW-interfaces other: 1
- With optical interface: No
- Supporting protocol for TCP/IP: No
- Supporting protocol for ASI: No
- Supporting protocol for PROFIBUS: Yes
- Supporting protocol for CAN: Yes
- Supporting protocol for INTERBUS: No
- Supporting protocol for KNX: No
- Supporting protocol for Modbus: Yes
- Supporting protocol for Data-Highway: No
- Supporting protocol for DeviceNet: Yes
- Supporting protocol for SUCONET: No
- Supporting protocol for other bus systems: Yes
- With PC connection: Yes
- Supporting protocol for SERCOS: No
- Supporting protocol for INTERBUS-Safety: No
- 4-quadrant operation possible: Yes
- Number of interfaces PROFINET: 0
- Type of converter: U converter
- Integrated breaking resistance: No
- Application in industrial area permitted: Yes
- Application in domestic- and commercial area permitted: No
- Max. output frequency: 599 Hz
- Max. output at linear load at rated output voltage: 15 kW
- Max. output at quadratic load at rated output voltage: 15 kW
- Supporting protocol for AS-Interface Safety at Work: No
- Supporting protocol for DeviceNet Safety: No
- Supporting protocol for EtherNet/IP: Yes
- Supporting protocol for Foundation Fieldbus: No
- Supporting protocol for PROFINET CBA: No
- Supporting protocol for PROFINET IO: Yes
- Supporting protocol for PROFIsafe: No
- Supporting protocol for SafetyBUS p: No
- Max. output voltage: 500 V
- Nominal output current I2N: 33 A
- Supporting protocol for BACnet: No
- Napięcie [V]: 380
- Szerokość produktu [cm]: 18
- Wysokość produktu [cm]: 33
- Długość produktu [cm]: 23.2
- Stopień ochrony IP: IP20
